12G 26P Copper SFF 8088 3 Meter 10 Foot External SAS Cable

Product Categories
Contact Now

12G 26P Copper SFF 8088 3 Meter 10 Foot External SAS Cable

Place of Origin : Guangdong,China

Brand Name : HiSeTec

Certification : RoHS CE

Packaging Details : PE bag

Delivery Time : 5-8Week

Payment Terms : TT

Color : Black

Transmission rate : 12Gbps

Length : 3M

Wire AWG : AWG28

outer covering : Zinc alloy

PCB : Goldfinger gold plated 30U

Series : Mini SAS SFF-8088

Sample : Allowed

Contact Now

12G 26P Copper SFF 8088 3 Meter 10 Foot External SAS Cable


MiniSAS 12G 26P EXTERNAL COPPER CABLE

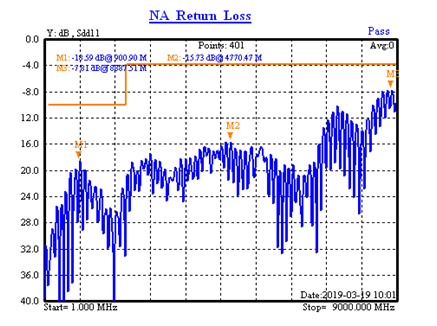

Signal Integrity

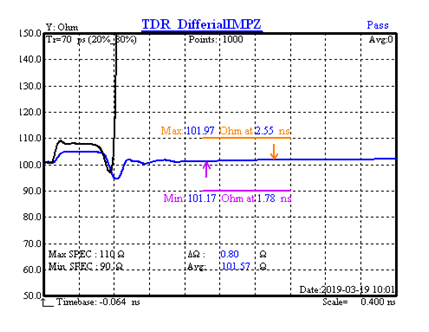

. Mated Connector Impedance: 100 ohm±15%
. Cable Absolute Impedance: 100 ohm±10%
. Cable Pair Matching: ±5 ohm
. Common Mode Impedance: 25 to 40 ohms

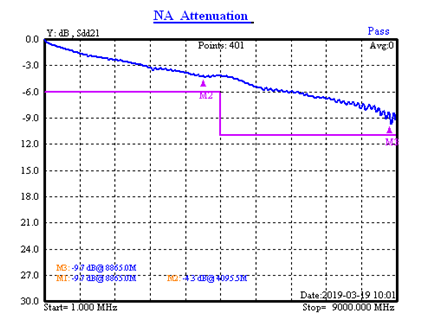

. Insertion loss:11dB maximum up to 9Ghz.
. Crosstalk: -35 dB up to 6Ghz

Product Features
· Transmission rate 12Gbps
· Meet SAS3.0 specification
· Low power
· Self lock design
· EMI radiation suppression design

Applications
· Servers
· Data storage equipment
· Workstation
· SAS port adapter
· Data/Communications

SFF-SFF-8088
Series: Mini SAS
· Cable Length:1.0 Meters
· Wire Size:30AWG,Tinned Copper,OD:7.8MM
· Plating: Au 30u"
· Color: Black Cable
· Environmental Compliance: RoHS

Item12G Passive Direct Attach Copper Cable
Cable TypeMini SAS  SFF-8088 to SSFF-8088 Power Cable
Connector 1Mini SAS SFF-8088 connector x 1
Connector 2Mini SAS SFF-8088 connector x 1
ConductorsTinned copper, 28AWG
InsulatorsPE, natural color
Drain WireTC, 28AWG
Data transfer rate12Gbps
Pin layoutStandard
OEMSupport

12G 26P Copper SFF 8088 3 Meter 10 Foot External SAS Cable
12G 26P Copper SFF 8088 3 Meter 10 Foot External SAS Cable
12G 26P Copper SFF 8088 3 Meter 10 Foot External SAS Cable

  • EXTERNAL TO INTERNAL MINI SAS cable is specifically designed to connect an SAS controller with an SFF-8088 port to an internal RAID card with an SFF-8087 port
  • BI-DIRECTIONAL SAS CABLE operates as either the Host or Target when connecting RAID SAS controller cards to a SAS backplane storage with a SAS hard drive
  • LEVERAGE RAID CONTROLLER PERFORMANCE with this straight, 4-lane, high performance internal Mini SAS 4i cable; Supports SAS 3.0 12 Gbps performance with compatible SAS or SATA storage systems and hot-swappable SATA/SAS drive bays
  • ROBUST DESIGN of external Mini-SAS 8088 to 8087 cable combines a shielded external Mini SAS 26 pin SFF 8088 metal connector on a cable with 28 AWG wire to an internal 36 pin SFF 8087 connector with a latch
