26AWG SFP+ DAC SFF 8431 10Gbps Passive Direct Attach Cable

Product Categories
Contact Now

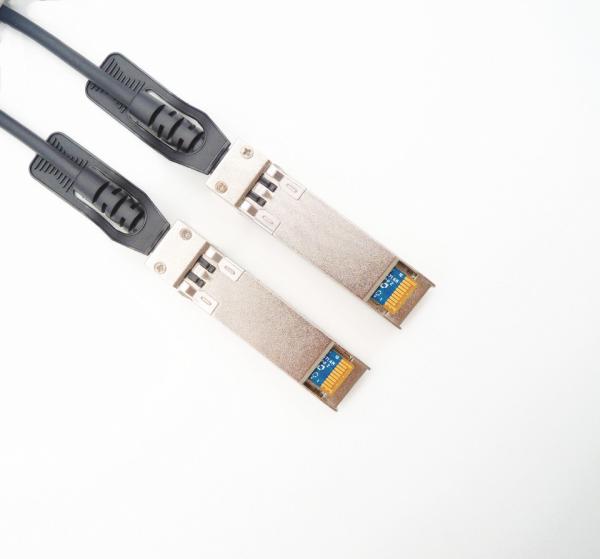

26AWG SFP+ DAC SFF 8431 10Gbps Passive Direct Attach Cable

Place of Origin : Guangdong,China

Brand Name : HiSeTec

Certification : RoHS CE

Packaging Details : PE bag

Delivery Time : 5-8Week

Payment Terms : TT

Color : Black

Length : 7M

outer covering : Zinc alloy

Transmission rate : 10Gbps

Series : SFP+ SFF-8431

PCB : Goldfinger gold plated 30U

Cable AWG : 26AWG

Sample : Allowed

Contact Now

26AWG SFP+ DAC SFF 8431 10Gbps Gigabit External SAS Cable



10G SFP + DAC (Passive) Cable compatible with Cisco, Dell, Ubiquiti, Juniper, Huawei

SFF-8431
Series:SFP+
· Cable Length:1.0/2.0/3.0/5.0/7.0 Meters
· Wire Size:30AWG/28AWG/26AWG/24AWG,
Tinned Copper, OD:4.2/4.7/5.2/6.0MM
· Plating: Au 30u"
· Color: Black Cable
· Environmental Compliance: RoHS

Product Features
· Meet MSA SFF-8431 specification
· Supports serials data rates up to 10Gbps
· Hot pluggable
· High cost effective to Fiber optics solution
· Low power consumption
· Enhanced EMI suppression
· Differential impedance 100ohm


Applications
· Switches / Routers / HBAs
· Server & Storage Devices
· Data Center Networking
· Enterprise storage
· High Performance Compute
· 10Gbs Ethernet
· Base Station / BBU / RRU


Electrical Characteristics

· Raw Cable Impedance: 100 ohm±10%
· Cable Assembly Impedance: 100 ohm±20%
· Intra-pair Skew: ﹤35ps
· Return Loss:﹤-11dB(10Mhz to 4.1Ghz)；
﹤-7dB(4.1Ghz to 11.1Ghz)
· Attenuation: 8.4dB/3M Max.@1.25Ghz
10dB/7M Max.@1.25Ghz
· Crosstalk:﹤-26dB(10Mhz to 6Ghz)；

﹤-20dB(6Ghz to 10Ghz)

Compatibility
CIS,Arista, Mellanox, Generic
Wire AWG
26AWG
Cable Length
7m(23ft)
Connector Type
SFP+
Max Data Rate
10Gbps
Protocols
SFF-8431 Infiniband SDR, 10G Base-SR
Color
Black





HST’s SFP+ DAC are high speed, cost effective alternative to fiber optics solution in
Ethernet,Fiber channel and Infiniband applications.



SFP+ DAC enable hardware OEMs and data center operators to achieve high port density at
low cost and reduced power requirement.



HST SFP+ DAC meets the industry MSA for signal integrity performance, can also customize
based on special require.
Applications

Product Tags:

10Gbps Passive Direct Attach Cable



SFP+ 10Gbps SAS Cable



26AWG Passive Direct Attach Cable
